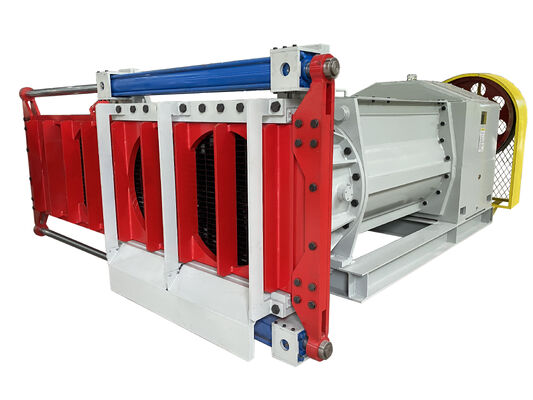

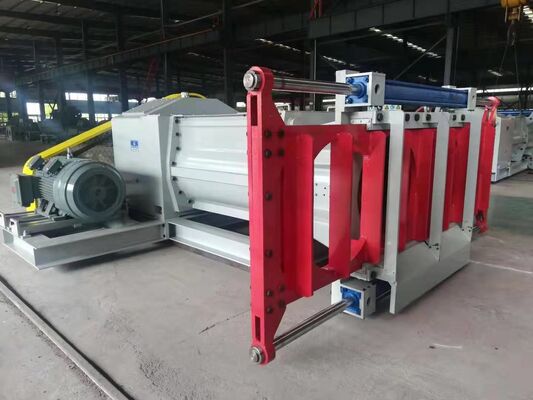

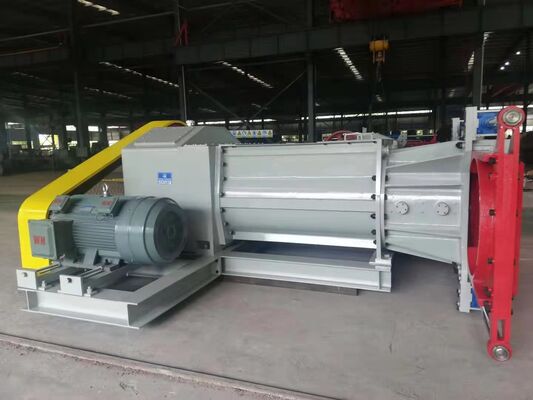

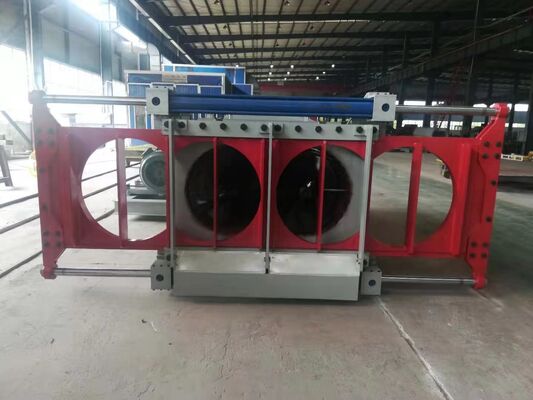

BBT TWJH750 front grid extruding mixer /filter for clay brick making project extrusion molding machineBBT
BBT TWJH750 front grid extruding mixer /filter for clay brick making project extrusion molding machine
TWJH750 front grid mixer extruder is a new product developed by our company on the basis of absorbing the advanced experience of similar products abroad, and it occupies a leading position among similar products in China.
The function of the front grid mixer: homogenize and mix raw materials through biaxial stirring; Through reamer extrusion, strengthen the mutual penetration of water between raw materials and improve the plasticity of materials. It is equipped with a mesh plate to increase the resistance, thereby improving the kneading efficiency of the raw materials, and can filter the grass roots and bark in the soil, reducing the blockage of the brick machine mold and the probability of breaking the steel wire of the blank cutting machine. It is suitable for thin-walled high-quality product.
Filter for auto clay brick making production line of raw materials extruding molding equipment
Filter mixer of technical paramerters:
| Item |
TWJH-550 |
TWJH-750 |
| Diameter of auger |
550mm |
750mm |
| Rotate speed for main shaft |
≥30 rpm |
≥30rpm |
| Motor Power |
90+5.5 kw |
132-160kw |
| Diameter for screen hole |
Customized building |
Customized building |
| Production capacity |
45-50 m³/h |
60-75 m³/h |
| Total weight of equipment |
8900 kg |
15800 kg |
BBT supply full auto clay brick making line machinery and equipment
TCNL series of Chain full steel type box feeder
TWGD series of double shaft mixer
GS series of roller crusher
TRA series of double tooth roller crusher
TWJH series of front grid extruding mixer
TWPM series of wet pan mill
QTQG series of cutter
EV series of vacuum extruder
Robot setting machine
Brick machine spare parts
BBT provide full automatic clay brick making project design, construction and technical supporting.
